0. Required Materials

Degreaser - To clean the surface(s) and ensure strong adhesion

Paper Towels - To wipe and dry the equipment surface(s)

1. Determine the sensor placement depending on your machine

Gearbox and extended shaft

The following example of a gearbox and extended shaft shows sensor locations on the gearbox and pillar bearings

Electric Motor pump

The following example of an electric motor pump set shows sensor locations, with four positions: two on the motor and two on the pump.

The following example shows where you might mount sensors if your primary concern is the motor rather than the pump

2. Prepare the surface(s)

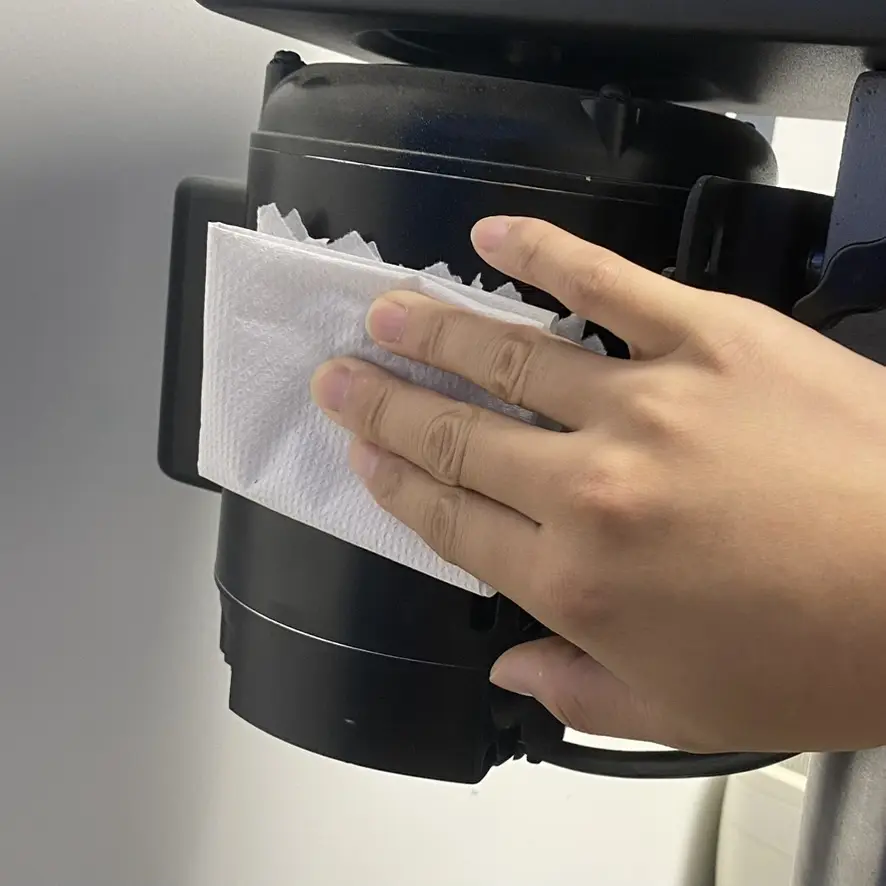

Using paper towl and a degreaser, thoroughly clean the area where the sensor will be installed

3. Installation

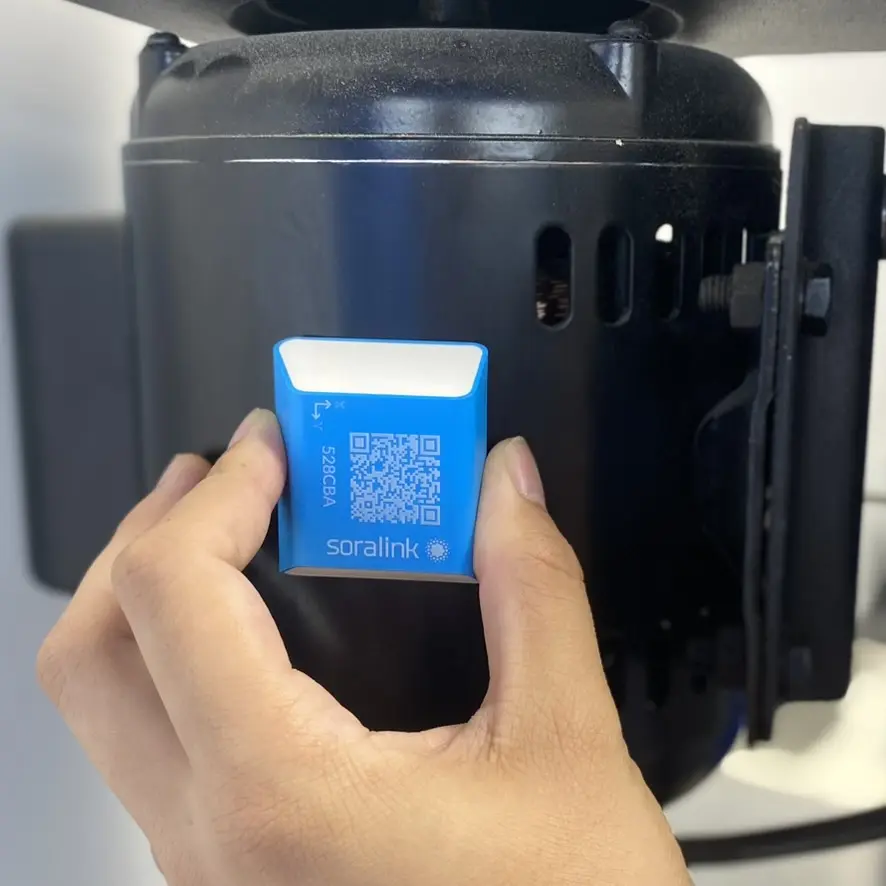

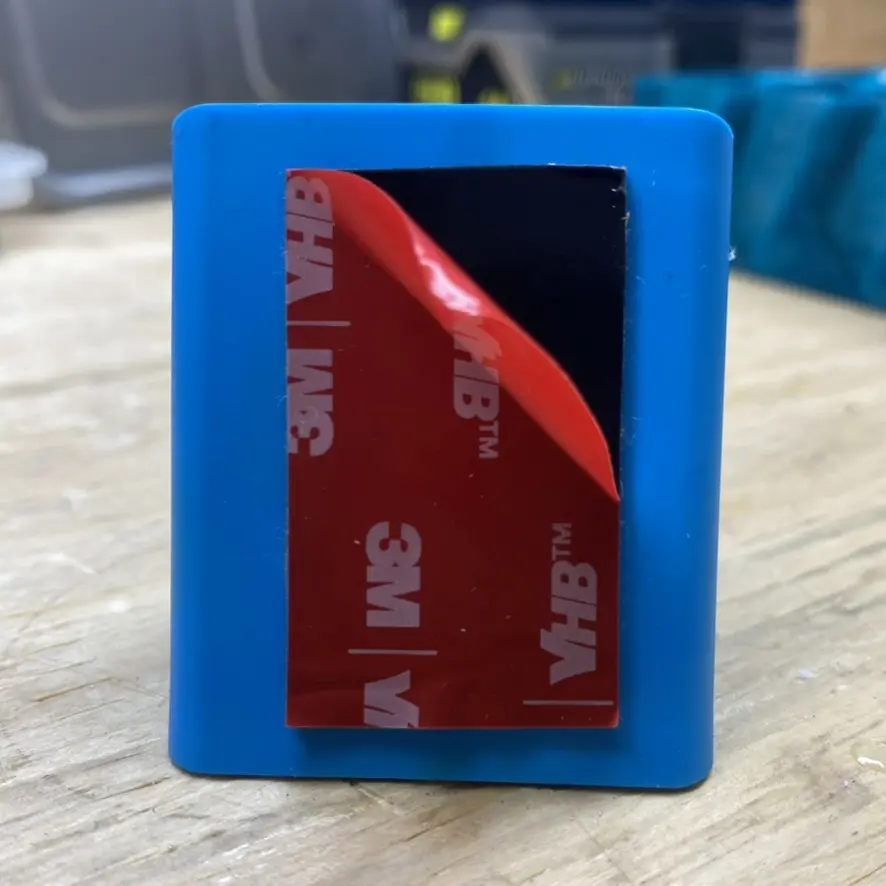

Peel the tape from the bottom of the sensor and firmly press the sensor into the chosen position for 10 seconds.
